800 MHz spectrometer

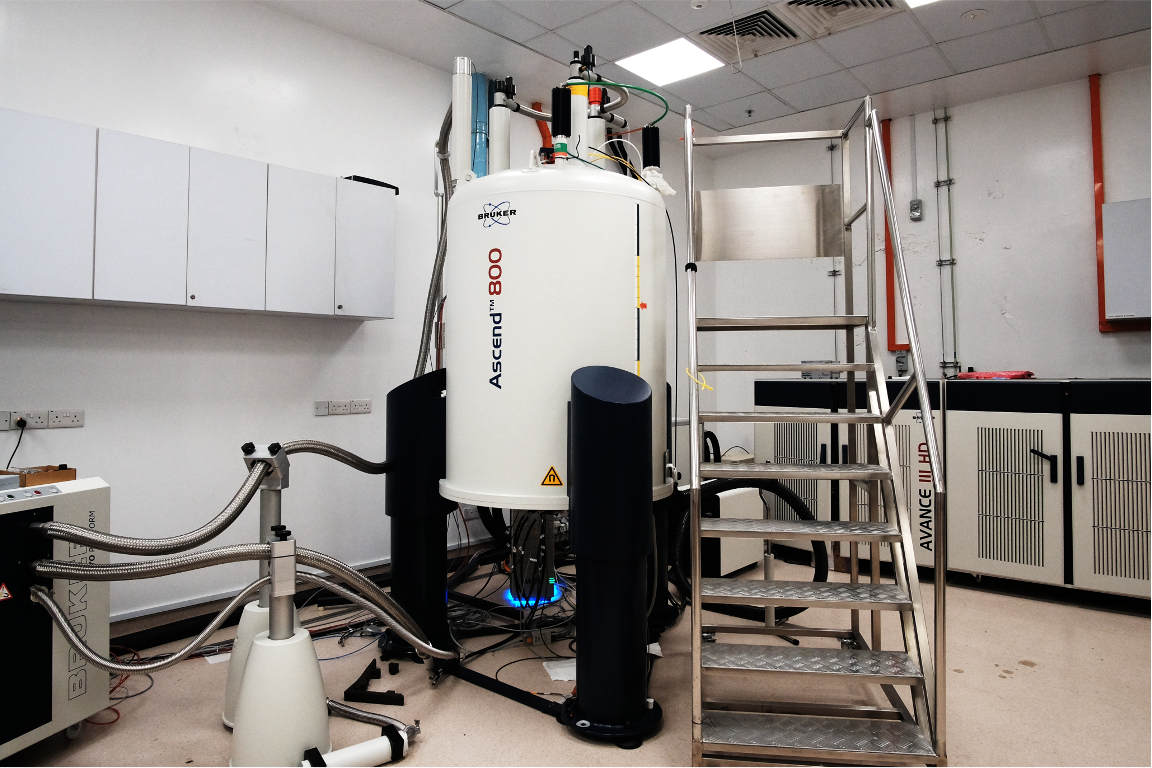

Bruker Avance III HD 800 MHz (18.8 T) standard-bore NMR spectrometer

High-Field NMR Facility, 01-15 Physics and Applied Physics, School of Physical and Mathematical Sciences, 21 Nanyang Link, Singapore 637371

An 800 MHz NMR spectrometer equipped for both solution and solid state NMR.

The 18.8 T magnet allows improved resolution 1H, 13C and 15N solid state NMR, with probes that can achieve MAS frequencies of up to 111 KHz. The state of the art CryoProbe provides greater sensitivity for 1H and 13C NMR of room temperature solution samples.
  • MAS Solid-state NMR   (1H, 13C and 15N)
  • Solution-state NMR   (1H, 13C, 15N and 31P)

NMR Probes:

  • 3.2 mm H/C/N Effee DVT MAS solid probe.
  • 1.9 mm H/C/N DVT MAS solid probe (MAS rate up to 42 kHz).
  • 0.7 mm H/C/N DVT ultrafast MAS solid probe (MAS rate up to 111 kHz).
  • 5 mm QCI H/P/C/N CryoProbe (solution-state).

Temperature range:

  • solid state - 30C to 80C
  • solution state - 5C to 125C
  • Biological Structure and Dynamics
  • Biopolymers and Materials
