Rock and Mineral Sample

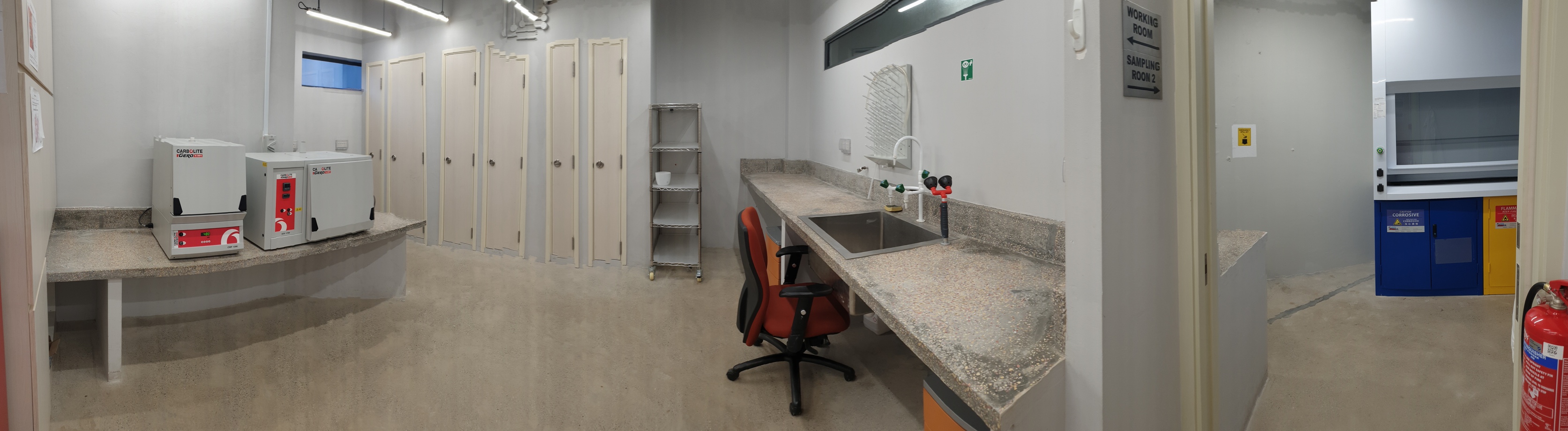

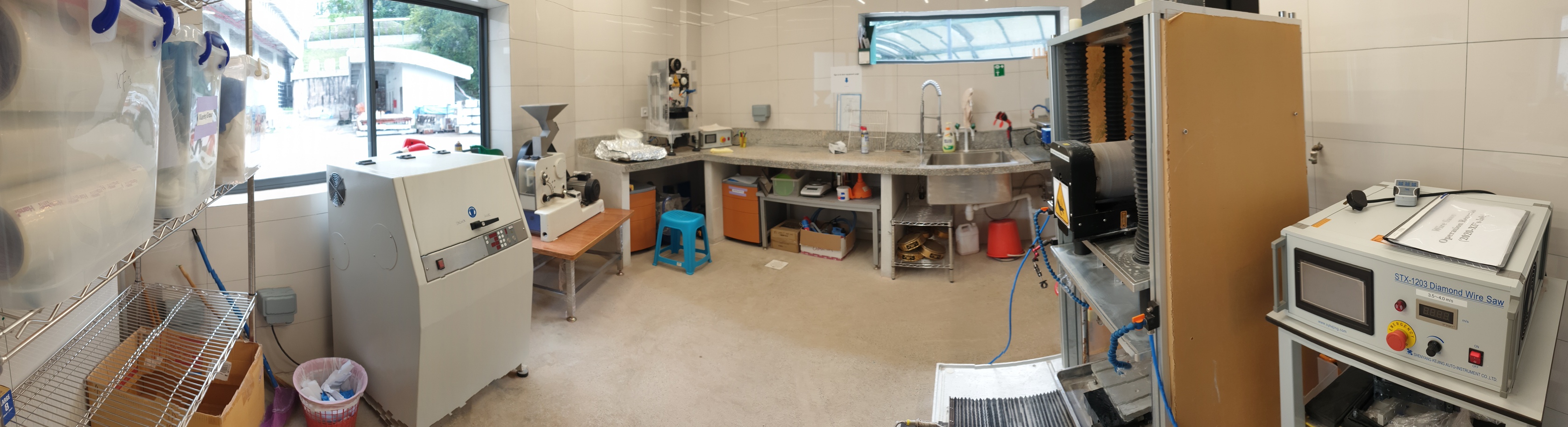

The preparatory lab designed to conduct petrological investigations contains rock-crushing and cutting equipment to prepare rock samples. Facilities in this lab also include high-temperature muffle furnaces as well as one-atmosphere gas-mixing furnaces  allows material studies and synthesis under controlled oxygen atmosphere across wide range of temperatures and up to 1700degC

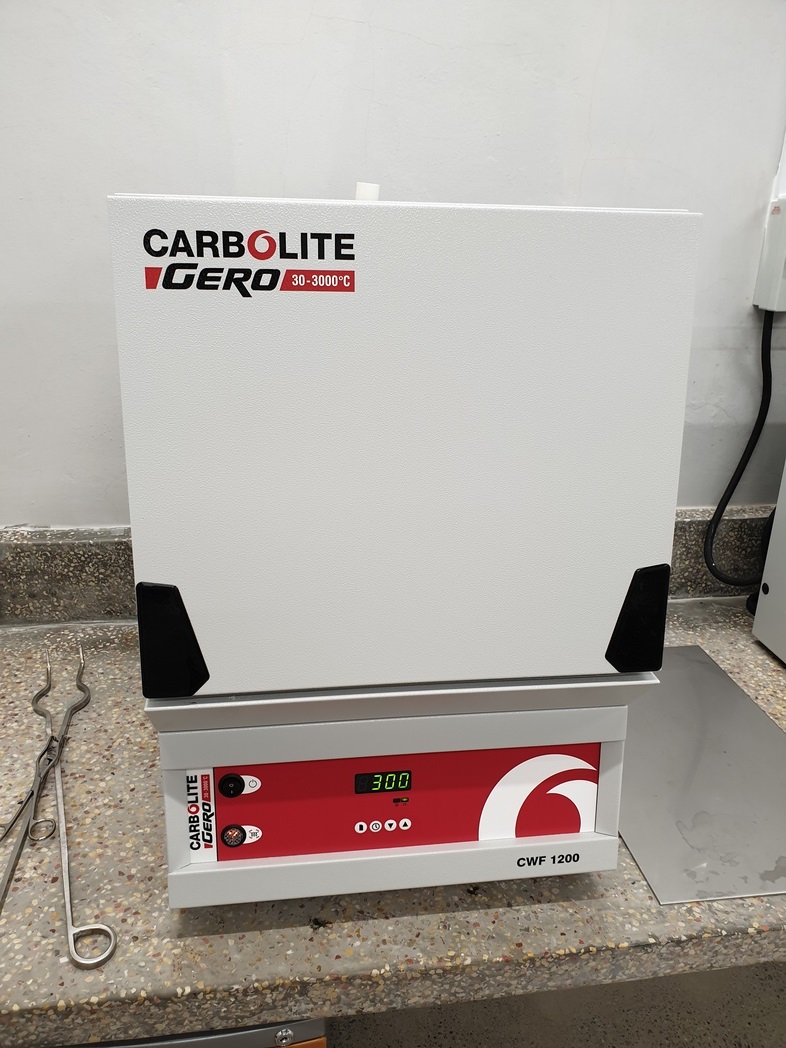

Equipment: Standard Chamber Furnace

Model/Brand: Carbolite-Gero

Specifications

  • Max temp (°C): 1200
  • Volume (litres): 13
  • Thermocouple type: R

Applications

For general purpose laboratory chamber furnaces

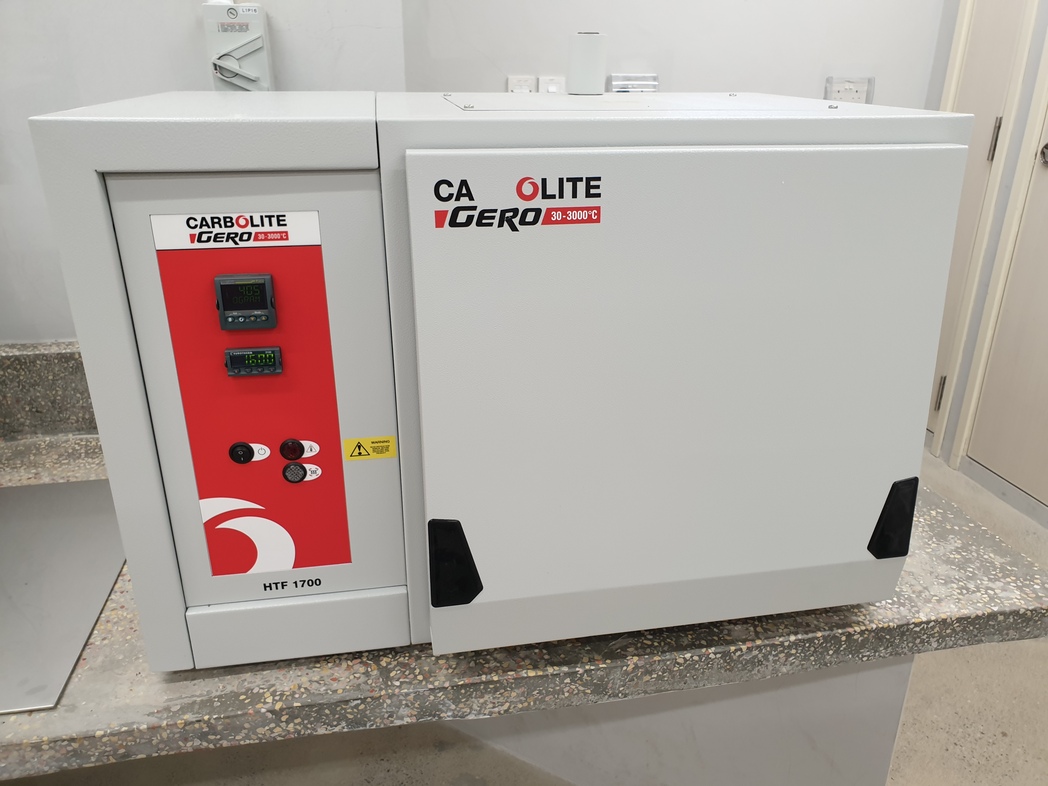

Equipment: High Temperature Muffle Furnace

Model/Brand: Carbolite-Gero

Specifications

  • Max temp (°C):  1700
  • Volume (litres): 5
  • Thermocouple type: B

Applications

For general purpose laboratory chamber furnaces

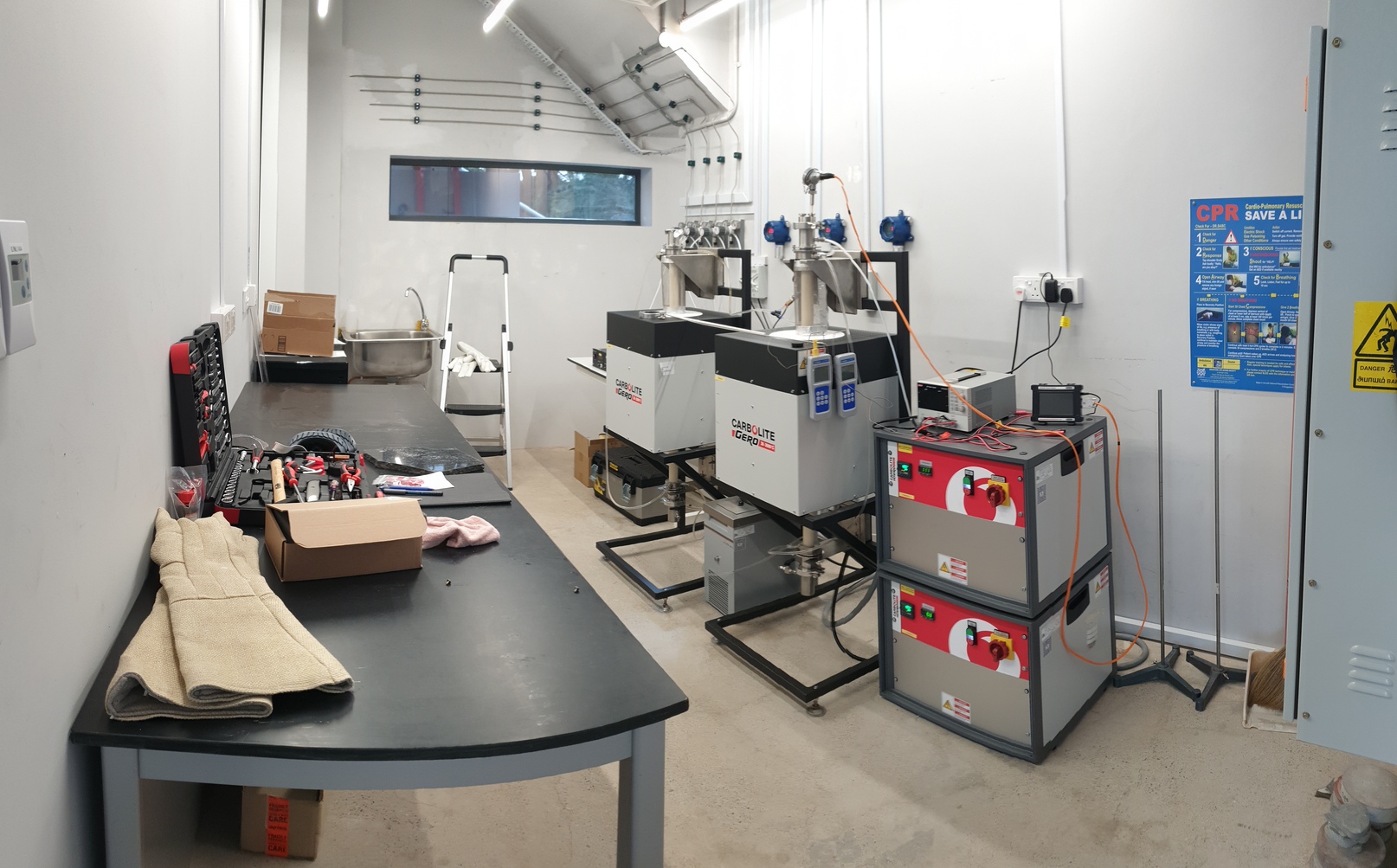

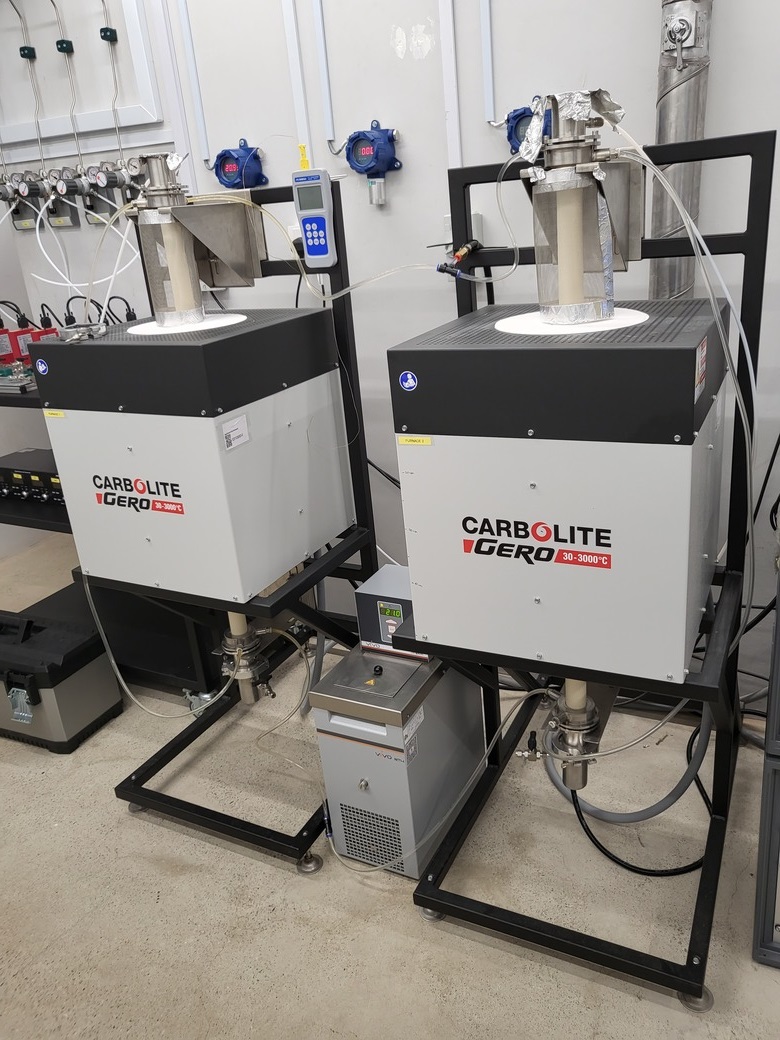

Equipment: Vertical Tube Furnace

Model/Brand: Carbolite-Gero

Specifications

  • Temperature: 1700 °C maximum
  • Thermocouple: High grade type B

Applications

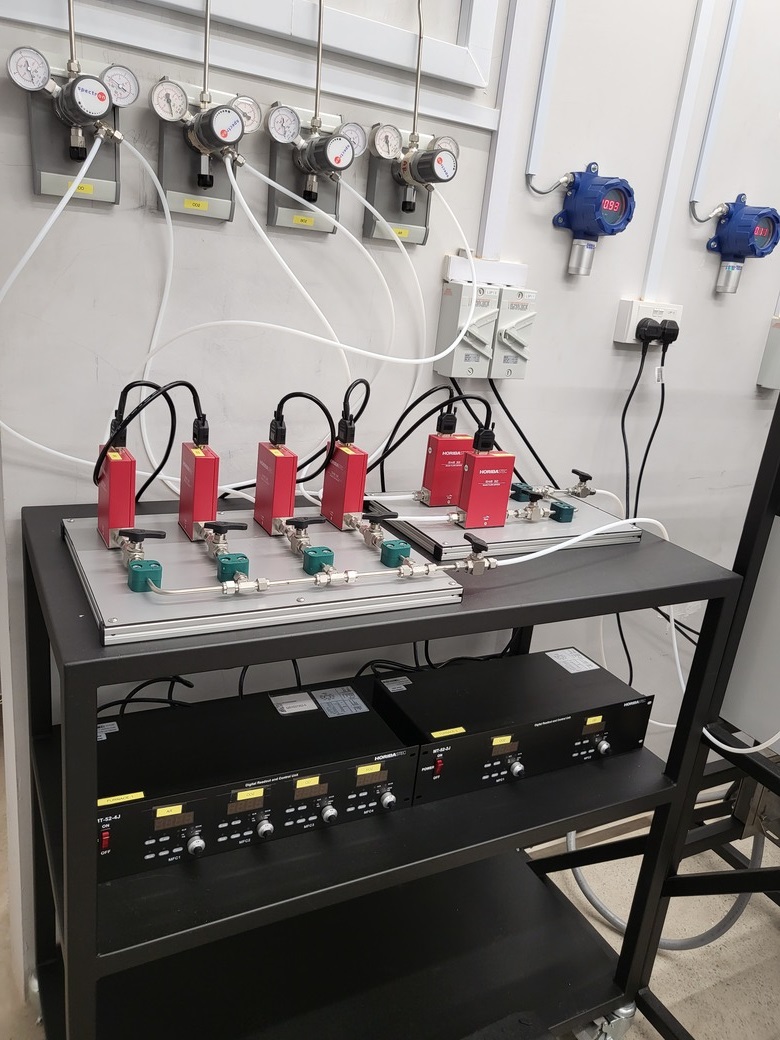

The vertical tube gas-mixing furnaces operate up to max 1600°C and are equipped with various gas mixtures including CO/CO2/SO2/Ar to allow adjusting oxygen atmosphere for wide range of experimental applications. The in situ oxygen fugacity is measured and monitored by an oxygen-specific solid electrolyte. The set-up is indispensable for synthesis of starting materials and redox-sensitive materials reactions, and thus applicable for different environments including extreme conditions

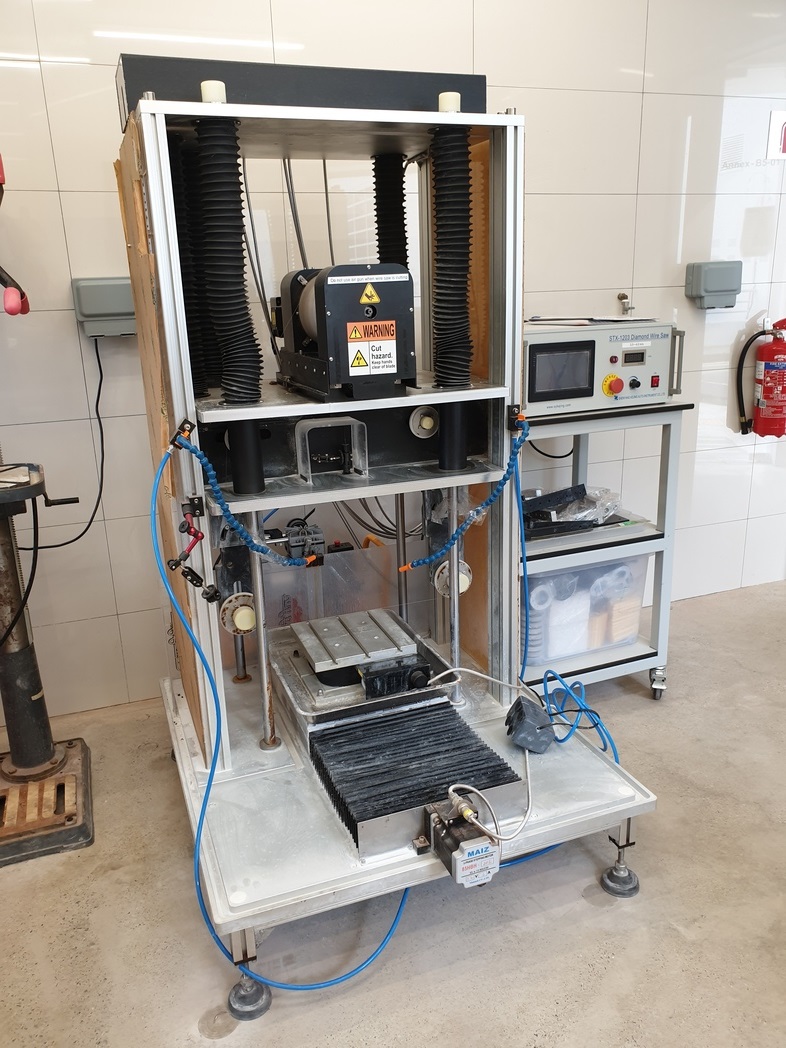

Equipment: Wire Saw with Sample Stage

Model/Brand: STX-1203

Specifications

  • Three axles Sample Stage
  • Travel Distance (Y and Z) and Cutting Width (Y): 0.01 - 300mm (±0.01mm)
  • Feeding Speed (Z up): 0.01 - 30 mm/min (±0.01mm)
  • Back Speed (Z down): 1 - 30mm/min (±0.01mm)
  • Stage Rotation (R): 0.01 - 360 degree (+/-0.032 degree)
  • Spooler Rotating Speed: 0 - 5 meter/second
  • Diamond wire: Ø 0.35mm x 150m Length (accuracy +/- 0.03mm)
  • Maximum Sample Dimensions: Ø300mm×300mm

Applications

To cut different hardness materials

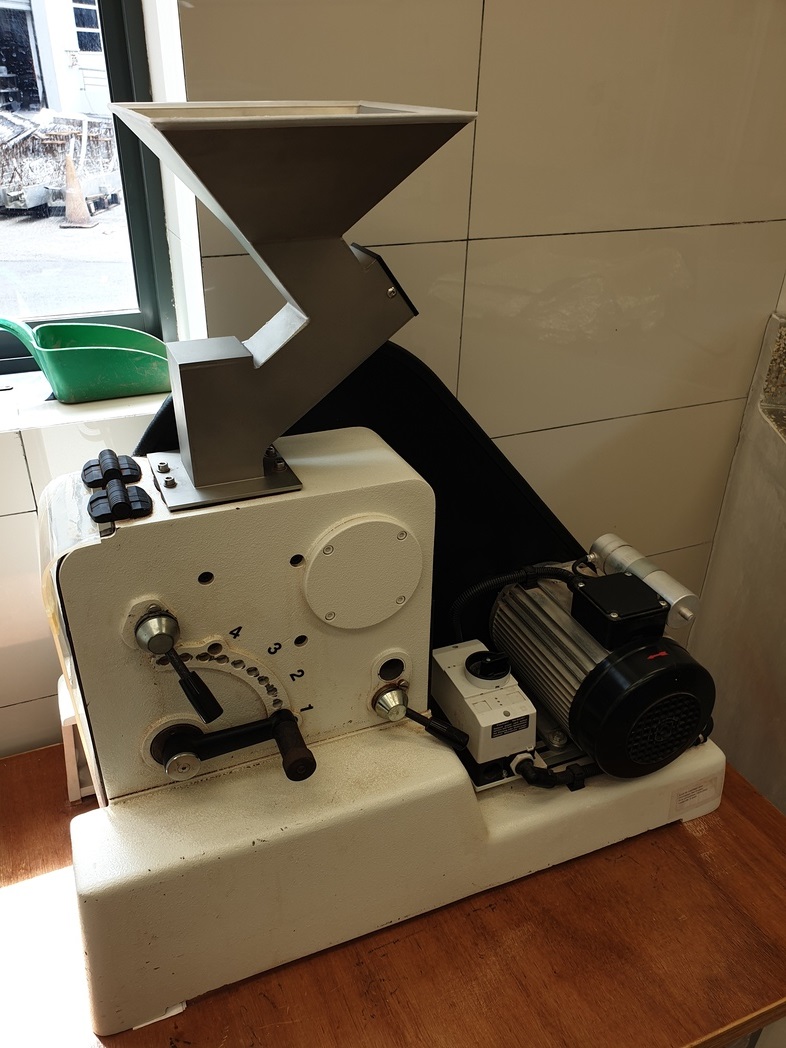

Equipment: Jaw Crusher

Model/Brand: 2894 Fritsch

Specifications

  • Max. feed size (depending on material): 95 mm
  • Min. sample quantity: 20 ml
  • Max. continuous throughput (depends on material and gap width): 250 kg/h
  • Final fineness: 0.3 - 15 mm
  • Feeding: Batchwise/continuous
  • Eccentric oscillations: 308 movements/min

Applications

For geology and mineralogy and soil research

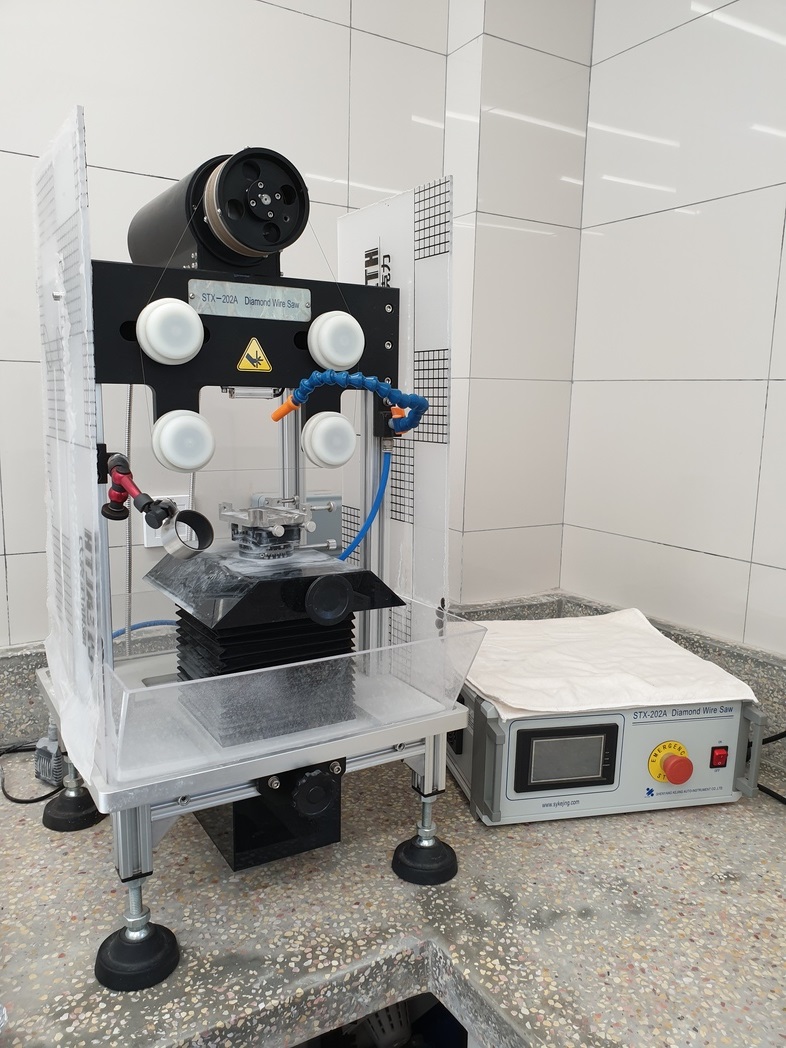

Equipment: Diamond Wire Saw

Model/Brand: STX-202A

Specifications

Sample stage:
  • Z-axis: 50mm
  • Y-axis: 50mm
Cutting parameters:
  • Feed Speed: 0.01 mm/min to 40 mm/min adjustable
  • Back Speed: 1 mm/min to 100 mm/min adjustable
  • Spooler spin speed: 1-260 RPM adjustable
  • Cutting depth: 0.1 - 50mm
  • Positional accuracy: +/- 0.01 mm

Applications

For cutting sample ≤ 2" diameter or square up to 50mm in thickness and to provide smooth cutting for TEM or IC samples

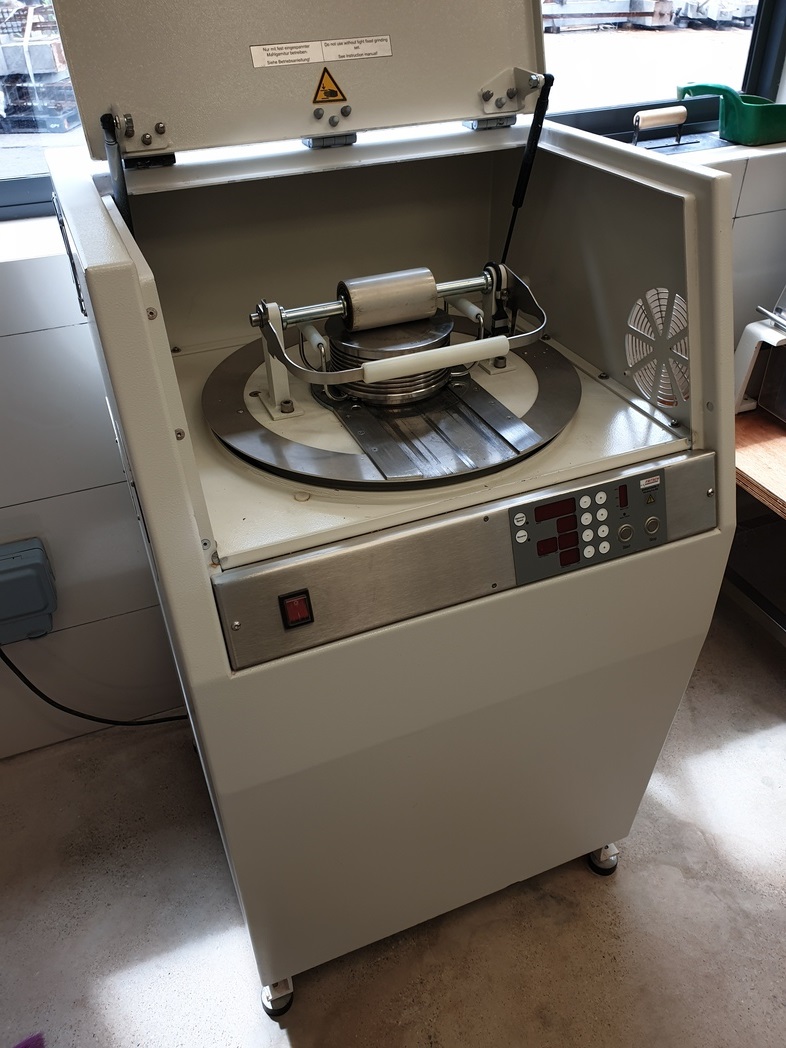

Equipment: Cup Milling

Model/Brand: 1241 Fritsch

Specifications

  • Max. feed size (depending on the material): 12 mm
  • Min. sample quantity: 10 - 20 ml
  • Max. throughput (depends on material): 250 ml
  • Final fineness: 10 - 20 µm
  • Motor speed: 600 - 1500 rpm

Applications

For hard, medium-hard, brittle, fibrous samples and for metal free-grinding

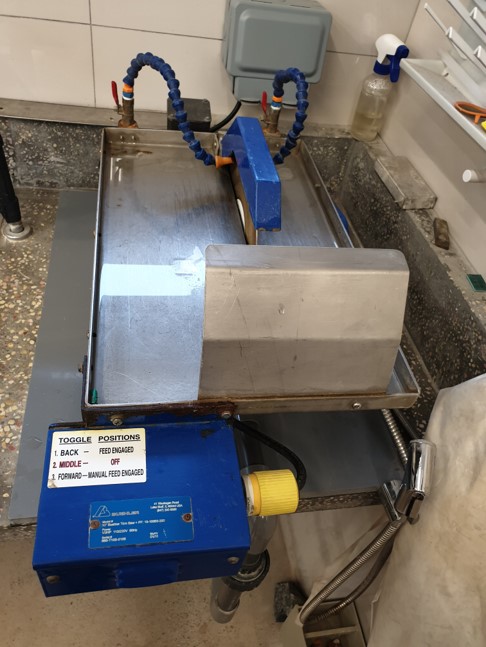

Equipment: Trim Saw

Model/Brand: 10-100303-250 BUEHLER

Specifications

  • Horsepower: 0.33HP
  • Motor Speed: 1725rpm
  • Blade Size Diameter: 10inch

Applications

Produce high quality cut surfaces
