Forest Ecology Instrument





Equipment: Auto Analyzer

Model/Brand: AA500 SEAL

Specifications

  • Maximum sample size: 28 x 36 cm
  • Maximum image area: 25 x 26 cm
  • Excitation source: Trans UV 302, 254, 365 nm & White, Epi-White light
  • Illumination control: 3 modes (trans-UV, trans white, epi-white)
  • Detector: CCD
  • CCD resolution (H x V): 768 x 494 RS-170; 752 x 582 CCIR

Applications

For environmental applications, making it ideal for analyzing nutrients in water, wastewater, seawater, soil, fertilizer and plant extracts

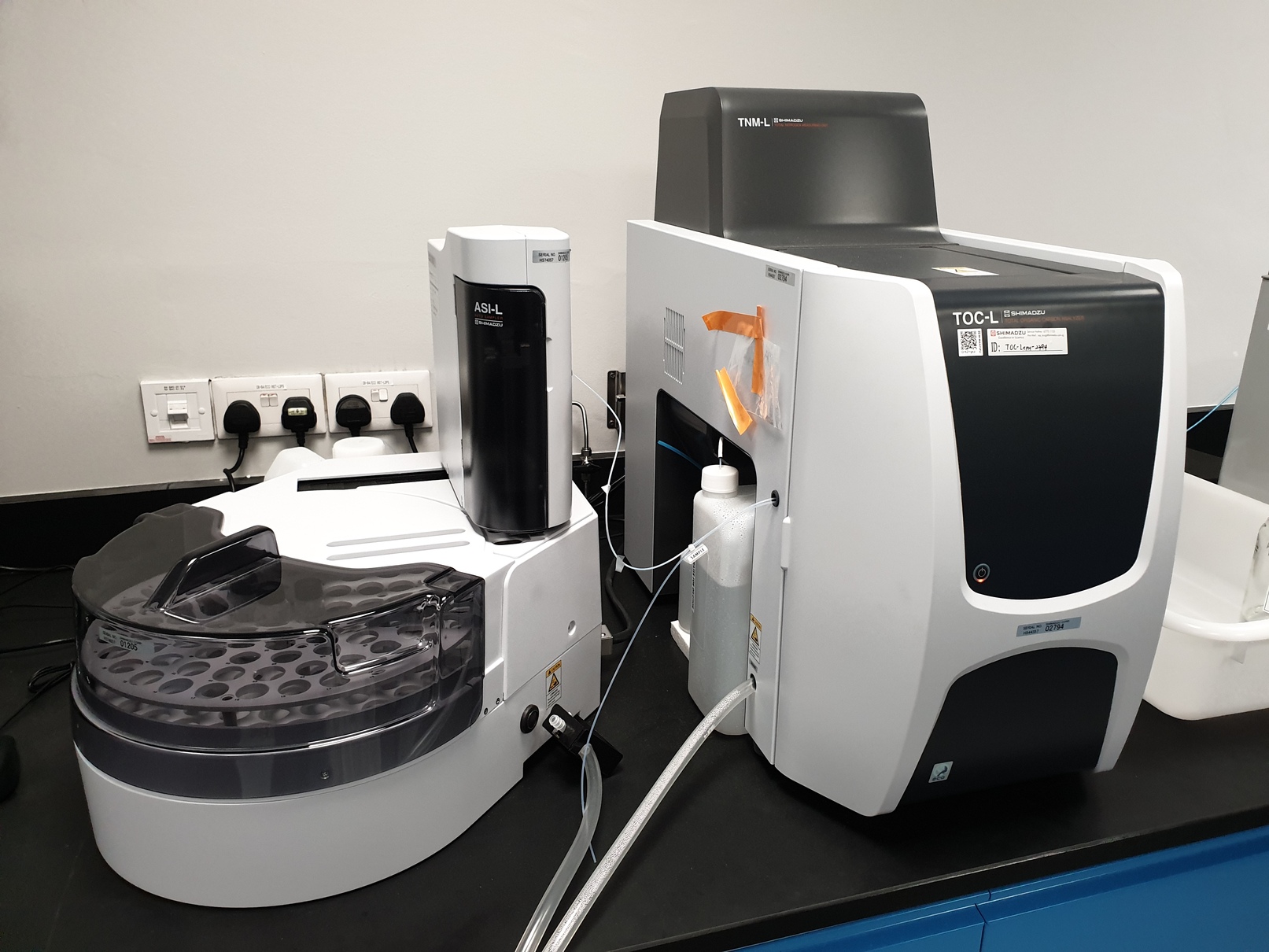

Equipment: Total Organic Carbon Analyzer

Model/Brand: TOC-LCPH-2794 Shimadzhu

Specifications

  • Measurement Method: 680 °C combustion catalytic oxidation – non-dispersive infrared detection (NDIR) method
  • Measured Items: TC, IC, TOC (= TC-IC), NPOC
  • Applicable Samples: Aqueous
  • Measurement Range: TC: 0-30,000mg/L; IC: 0-35,000mg/L
  • Detection Limit: TC, IC: 4 µg/L, TN: 5 µg/L
  • Reproducibility: TC, IC, NPOC: CV 1.5 % max. or ±4 µg/L max
  • Sample Injection Volume: 10 to 2,000 µL variable

Applications

Investigations and experimental research on Global environment and eutrophication, river water, lakes and marshes, underground water, sea water, soil, sludge, sediments, etc.

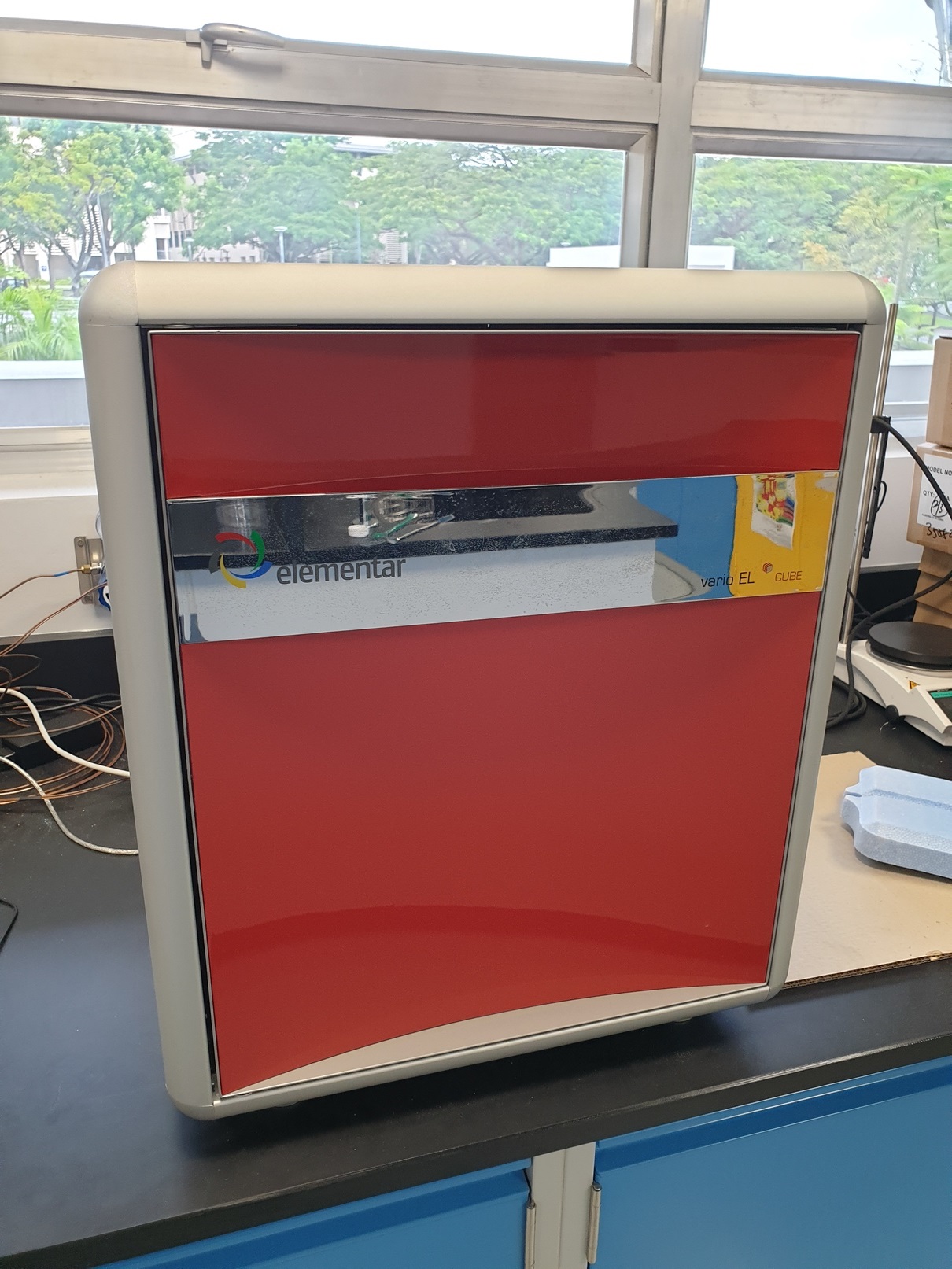

Equipment: Organic Elemental Analyser

Model/Brand: VARIO EL CUBE Elementar

Specifications

  • High-temperature combustion unit: Complete sample digestion at up to 1,200 °C
  • Purge and trap chromatography: Separation of gaseous components on up to three gas-selective columns.
  • Detector: Thermal Conductivity Detector (TCD)

Applications

Elemental analysis for simultaneous carbon, hydrogen, nitrogen, and sulfur analysis, offering additional options for the determination of oxygen, chlorine, and total inorganic carbon (TIC)

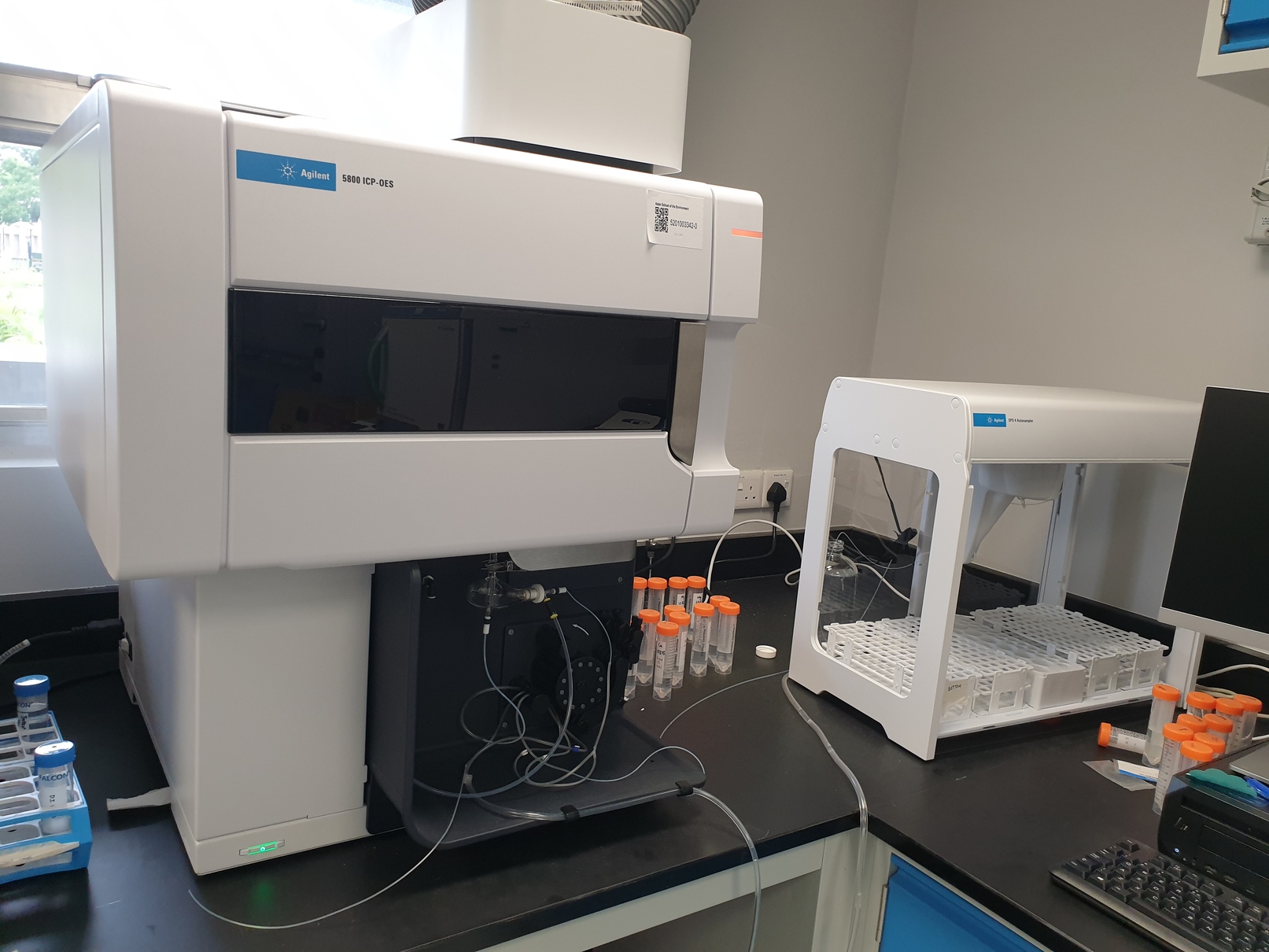

Equipment: ICP-OES

Model/Brand: 5800 Agilent Technologies

Specifications

  • Type: ICP-OES, optical emission
  • Wavelength: 167 nm - 785 nm

Applications

Provides ICP-OES analysis





Equipment: Advanced Microwave Digestion System

Model/Brand: ETHOS EASY Milestone

Specifications

A high-pressure and high-temperature rotor with up to 15 TFM vessels with a volume of 100 mL

Applications

For microwave solvent extraction, organic and inorganic synthesis, protein hydrolysis, and vacuum evaporation

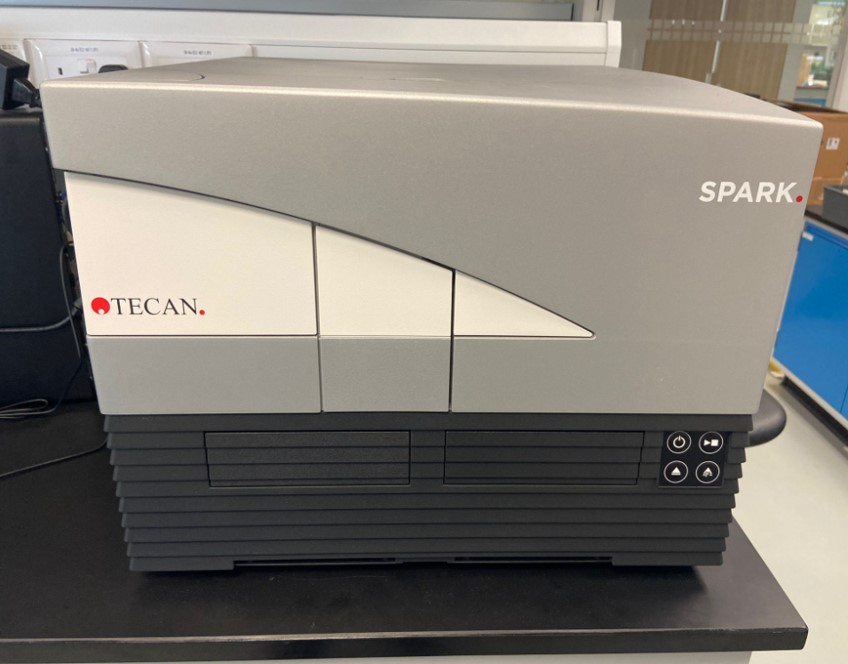

Equipment: Microplate Reader

Model/Brand: Tecan/Spark® multimode microplate reader

Specifications

Spectro-fluorometer with two microplate slots. Can act as: UV/vis spectrometer, fluorometer, luminometer, cell counter, automated micoscope, incubator, dispenser.

Applications

Measure fluorescence, fluorescence polarization, absorbance and luminescence, such as for measuring absorbance wavelengths for phosphorous content.
